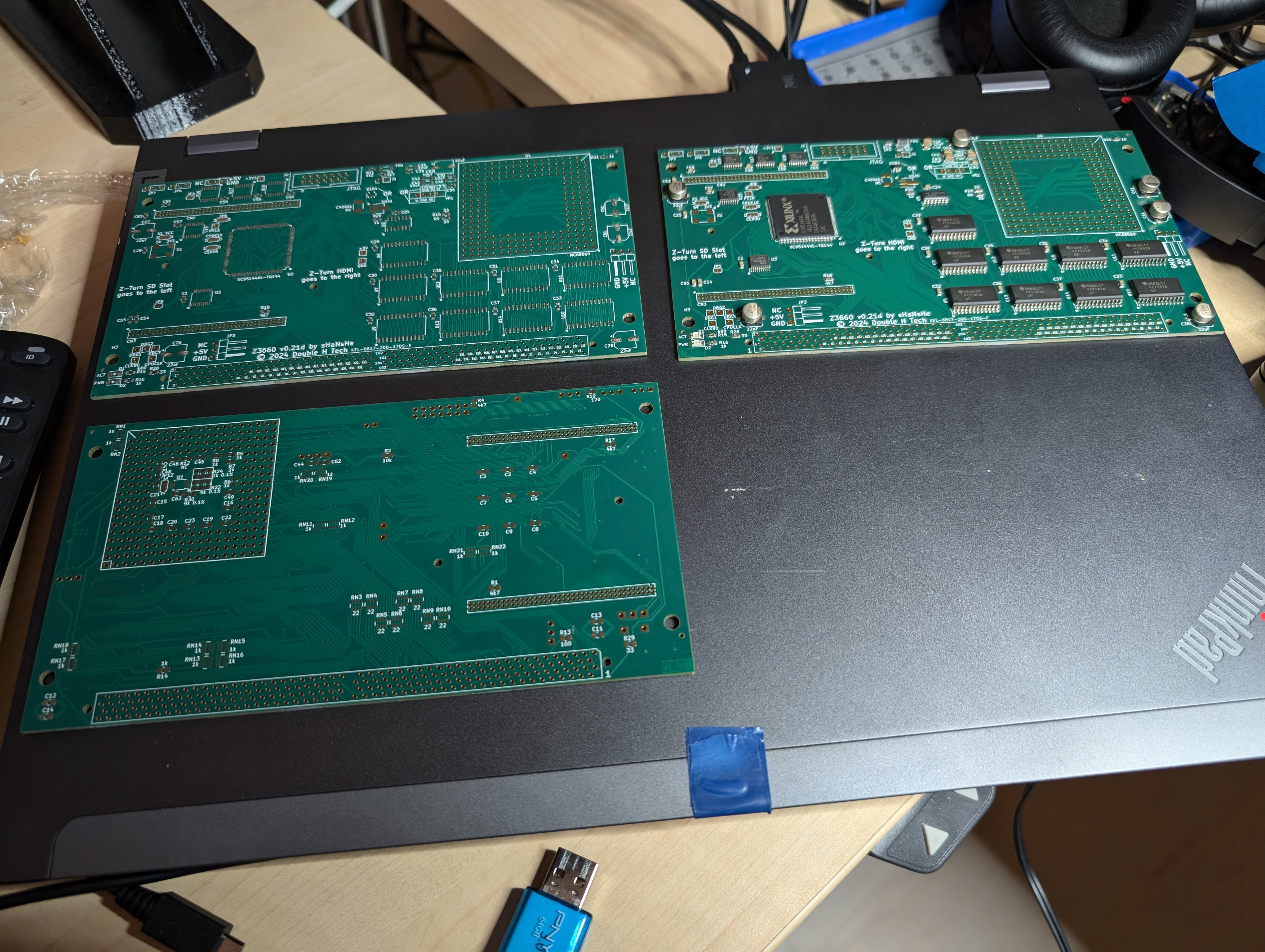

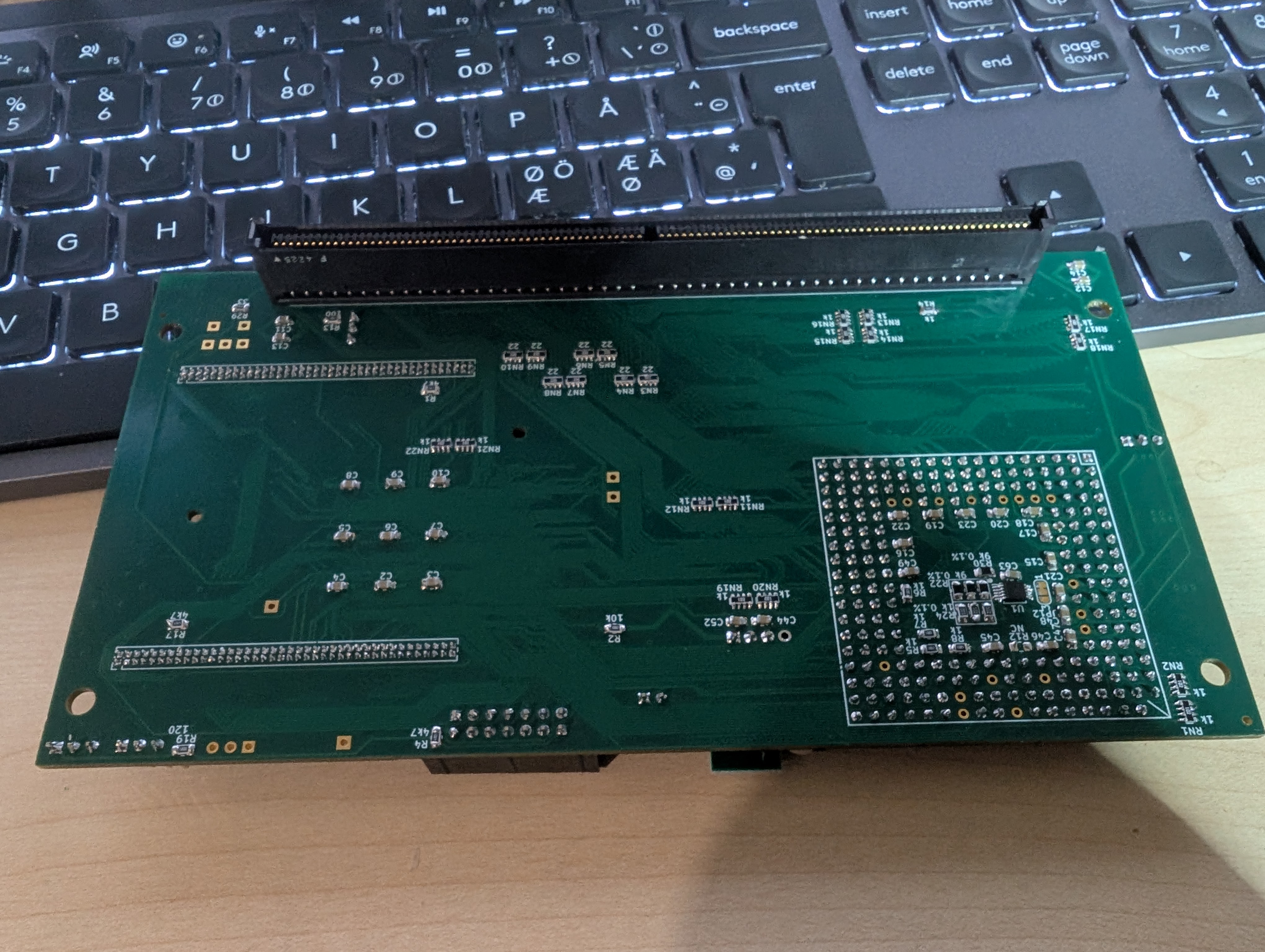

Next soldering project, Z3660. PCB’s arrived from JLCPB partly populated as you can see from the picture. Bottom side and all the connectors was my job.

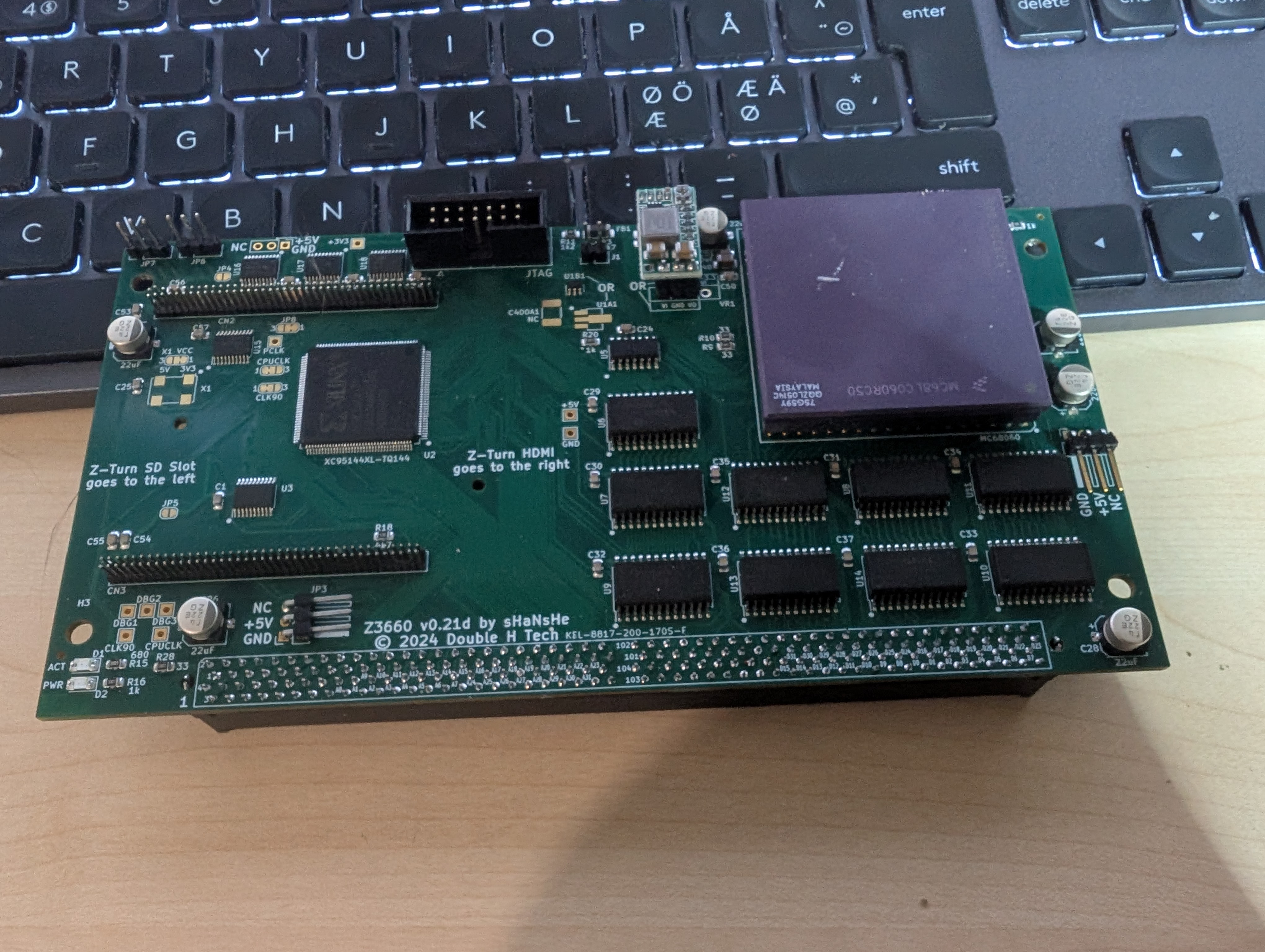

And fully populated board, including 68LC060 CPU.

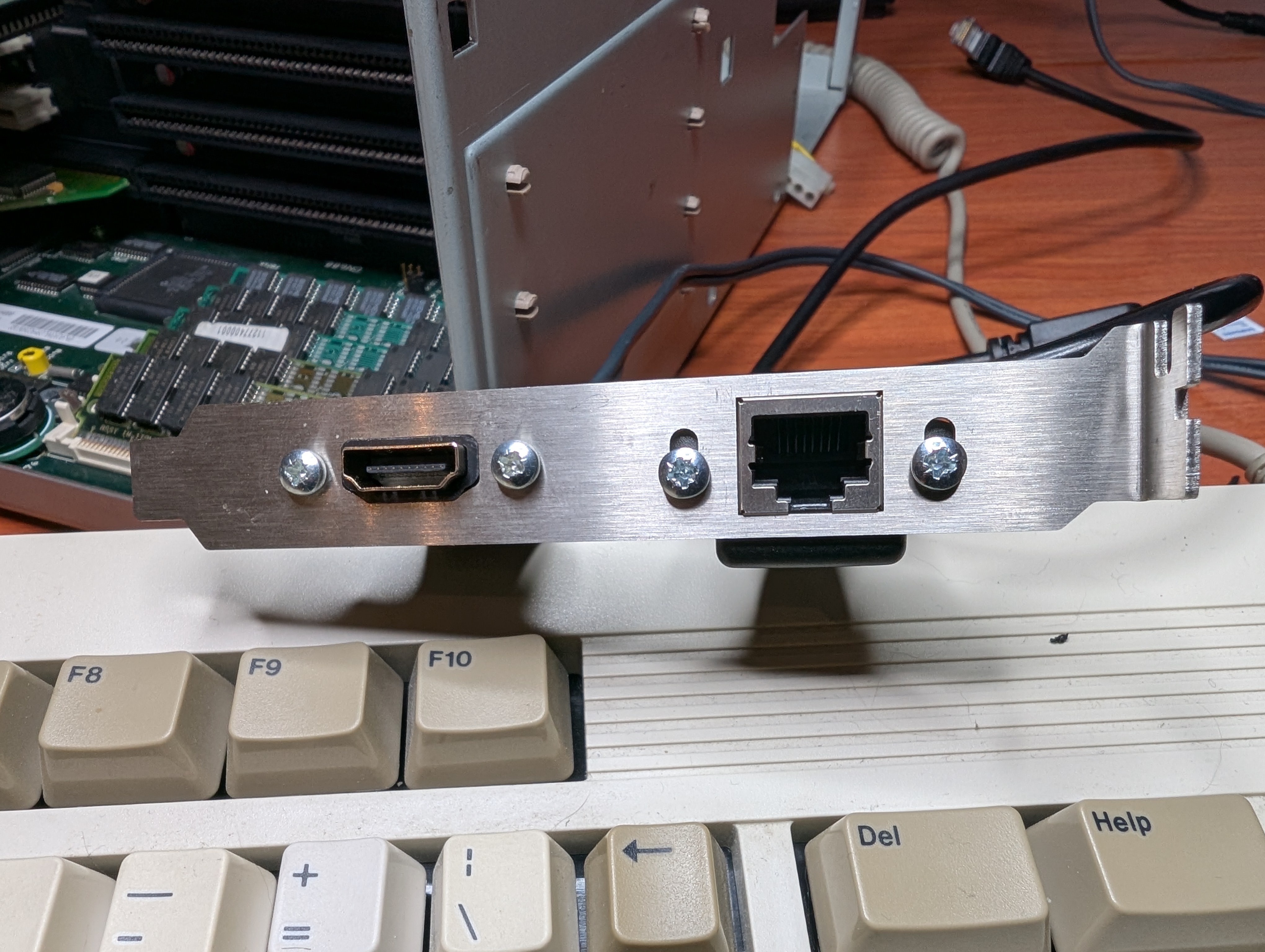

And as I like everything to be done properly, I got really nice bracket for HDMI and Ethernet connectors.

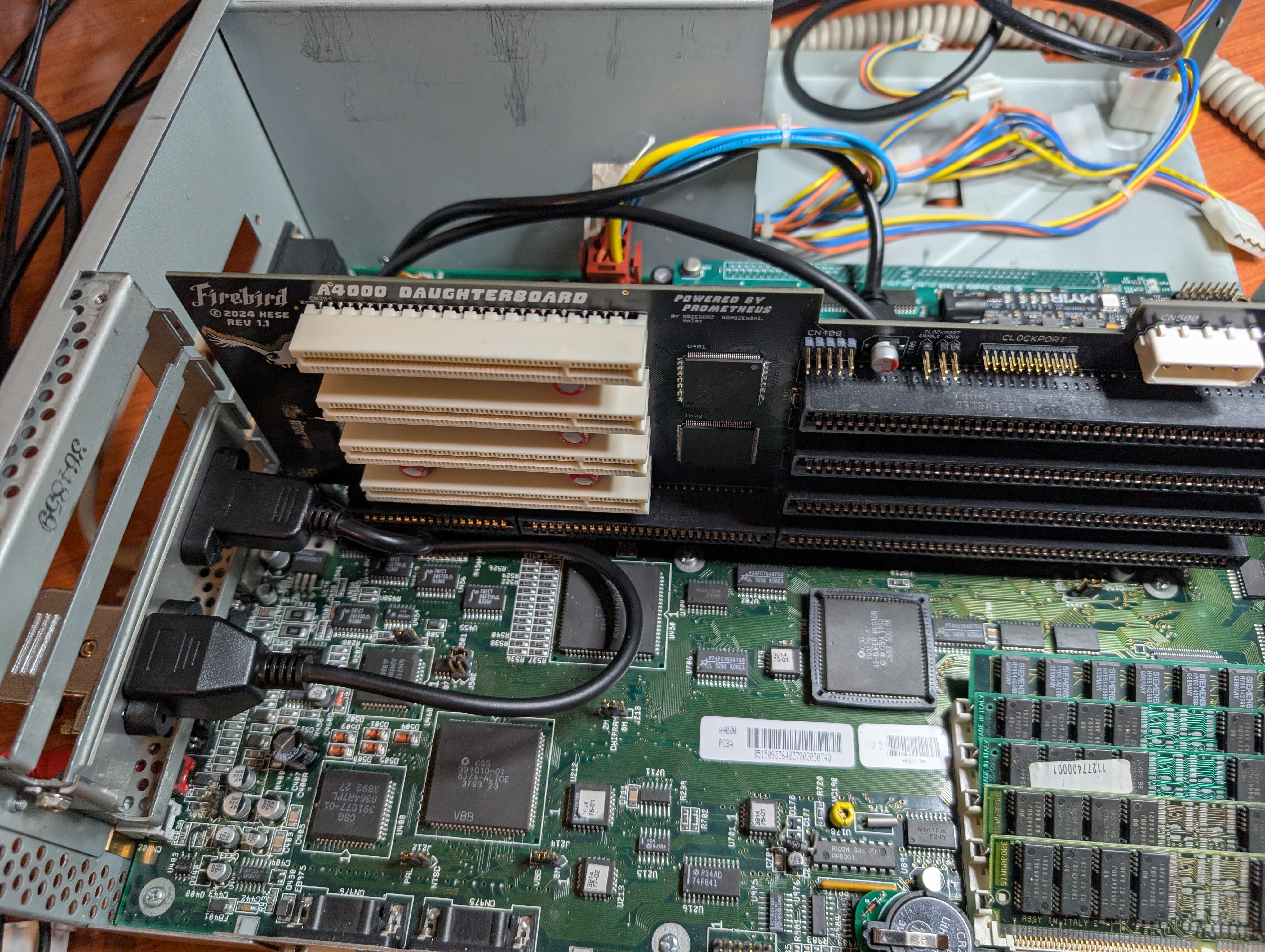

And cables routed behing daughtercard to the Z3660 HDMI and Ethernet connectors.
