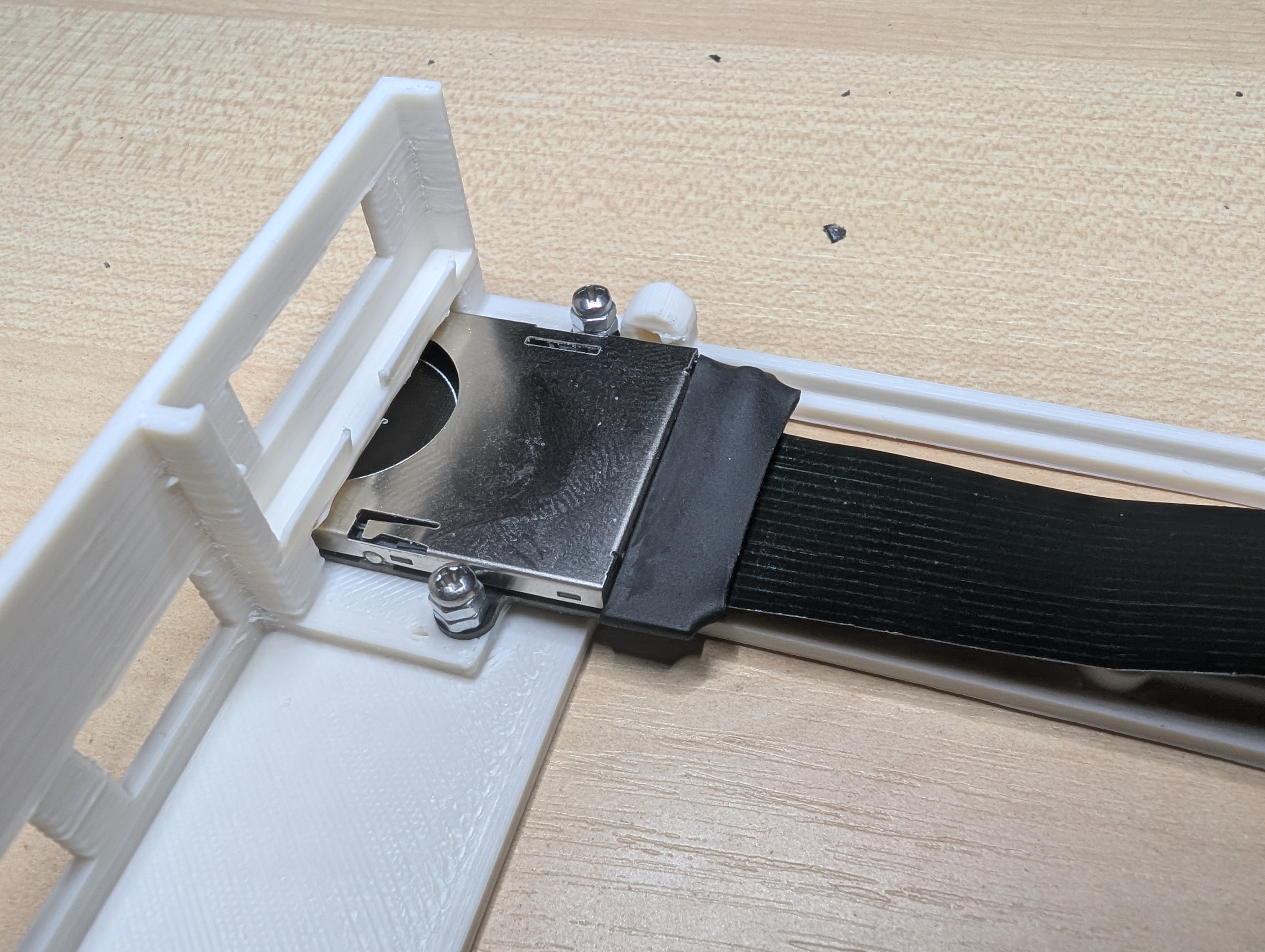

As Amiga 4000D doesn’t have too much spare space in front for additional gadgets and connectors, I decided to model completely new 3.5″ Gotek mounting bracket with 0,91″ OLED display, rotary encoder, additional USB port and SD card reader slot. You can find it at printables.com. My first model ever with Fusion 360, so the model file itself is kinda mess, sorry.

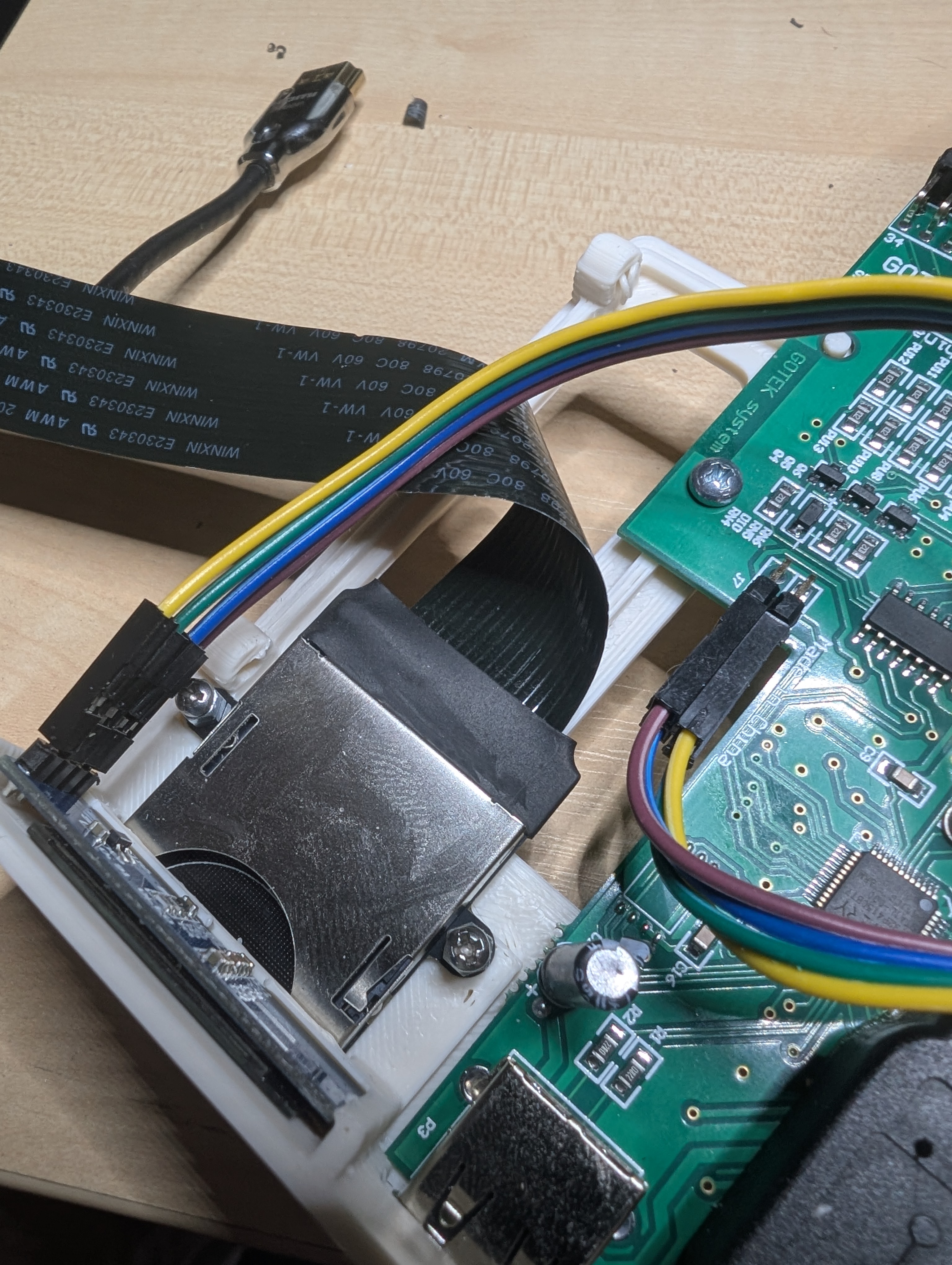

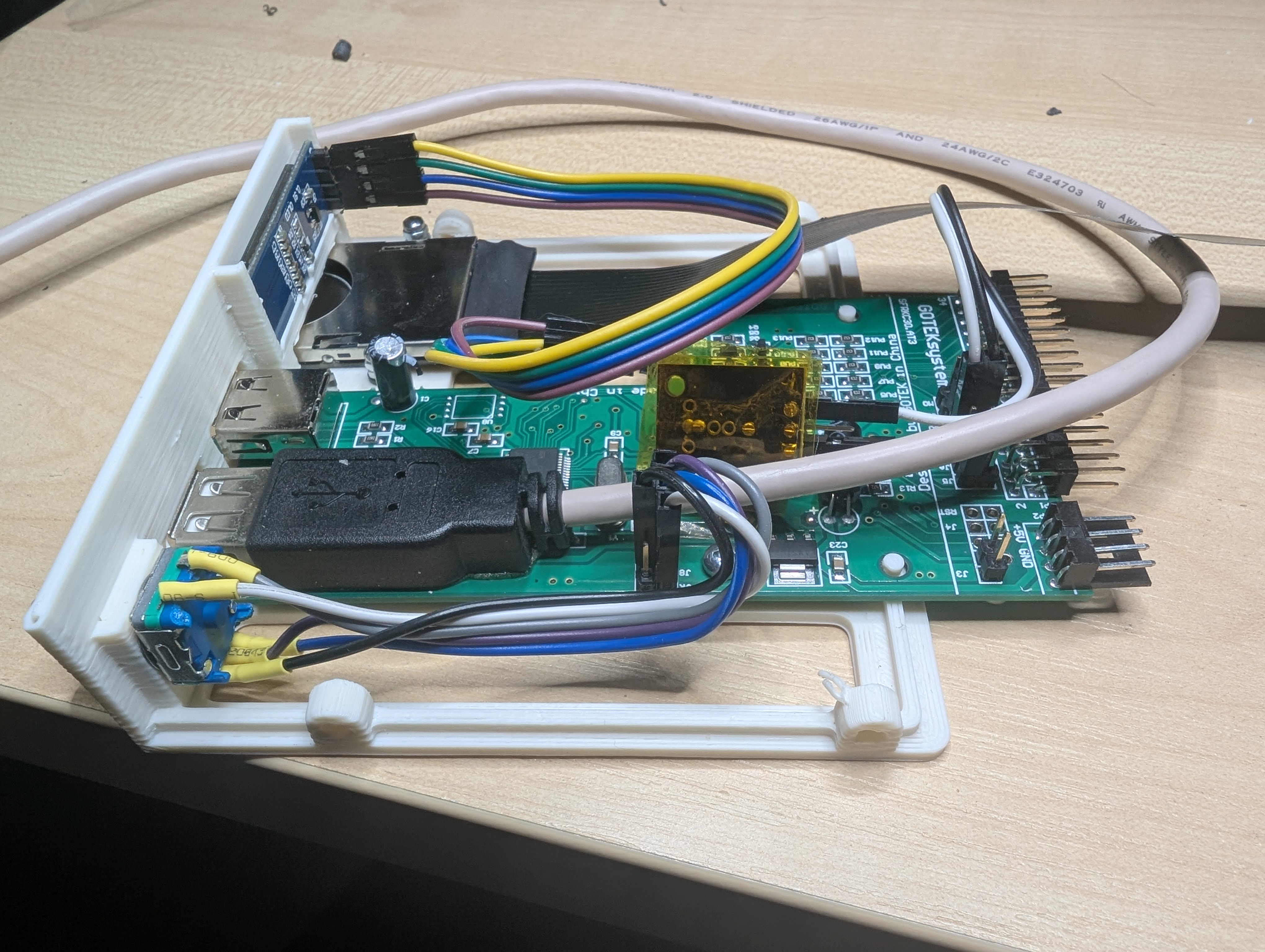

I had to remove Gotek LEDs and buttons, which are redundant because of the rotary encoder, to fit the USB extender there. It’s just fixed to the PCB, possibly you could add normal PCB USB connector there, but didn’t have one available. This seems to work just fine. Other end of the USB cable goes to USB PCI card with NEC chipset which has 4 external and 1 internal USB port.
